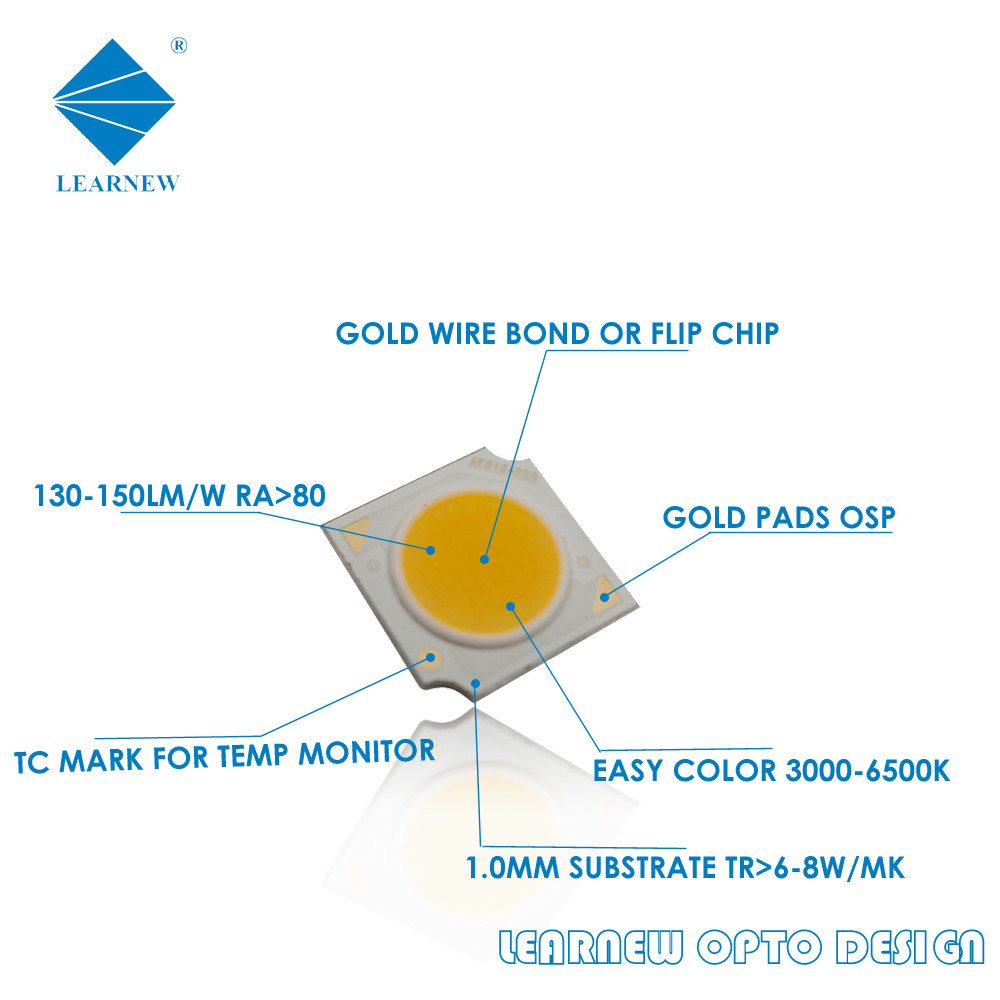

High efficiency 120-140lm/w 1414 series flip chip cob led 3000K high cri 90 EPISTAR chip
Product Specifications
| Models | LN-AFS14XW-P18-11 | LN-AFS14XW-P18-11 | LN-AFS14XW-P18-11 | LN-AFS14XW-P18-11 |
| Electronic power | 18W | 18W | 18W | 18W |
| Color temperature | WW:
Warm white=2700-3000K
NW:
Neutral white=4000-4500K
PW:
Pure white=6000-6500K | WW:
Warm white=2800-3000K
NW:
Neutral white=4000-4500K
PW:
Pure white=6000-7000K | WW:
Warm white=2700-3000K
NW:
Neutral white=4000-4500K
PW:
Pure white=6000-7000K | WW:
Warm white=2700-3000K
NW:
Neutral white=4000-4500K
PW:
Pure white=6000-7000K |
| Luminous efficiency | 120-140lm/w | 110-120lm/w | 120-140lm/w | 110-120lm/w |
| Working voltage | 9V | 9V | 12V | 12V |
| Circuit | 3S13P | 3S13P | 4S10P | 4S10P |
| Size | 14*14mm | 14*14mm | 14*14mm | 14*14mm |
| LES(Diameter) | R11mm | R11mm | R11mm | R11mm |
| View angle | 120DEG | 120DEG | 120DEG | 120DEG |
| CRI | >80 | >80 | >80 | >80 |
| SUBSTRATE | MIRROR ALU | MIRROR ALU | MIRROR ALU | MIRROR ALU |
| Working current | 2000mA | 2000mA | 1500mA | 1500mA |
Design Advantage :
1,No glare light
2,Color consistance
3,Low life decay
4,Low thermal resistance
5,High CRI 80/90/95+
6,High standard raw materials proovide
Application:
1,LED spotlight
2,LED car light
3,LED downlight
4,LED tracking light
5,LED underwater lamp
6,LED bulb
7.,LED Bar light
8,LED ceiling light
9,LED corn light
10,LED Solar light
11,Portable LED light
12,LED work light
