Sell Well 250nm 260nm 280nm 3535 Uvc Led Chip 3w Uvc Smd Chip For Air Purifier

  • 1
  • 2

Brand Name : LEARNEW

Model Number : LN-SMD3535UVC-P3

Certification : CE RoHS SGS

Place of Origin : CHINA

MOQ : 1000

Price : Negotiable

Payment Terms : T/T, L/C, Western Union

Supply Ability : 100,000PCS per month

Delivery Time : 7-12 working days

Packaging Details : Anti-static Blister packing

Color : Deep UV

Peak wavelength : 250-260nm/260-270nm/270-280nm

Input current : 350-500mA

Size : 3.5*3.5mm

LENS : Quartz Glass

Optical power : 80-120mW

Circuit : 1S1P

View angle : 120DEG

Contact Now

PRODUCT DETAIL

UV-C POWER Dominant Wavelength Optical Power IF VF WHOLE SIZE VIEW ANGLE SUBSTRATE
LN-SMD3535UVC-P3 3-5W 270-280nm 80-120mW 500-700mA 5-7V 3.5*3.5MM 120° ALN Coppering
260-270nm 80-120mW
250-260nm 80-120mW
LN-SMD3535UVC-P3D 3W 270-280nm 60-80mW 350-500mA 5-7V 3.5*3.5MM 120° ALN Coppering
260-270nm 60-80mW
250-260nm 60-80mW
LN-SMD3535UVC-P3Z 3W 270-280nm 50-70mW 350-500mA 5-7V 3.5*3.5MM 120° ALN Coppering
260-270nm 50-70mW
250-260nm 50-70mW

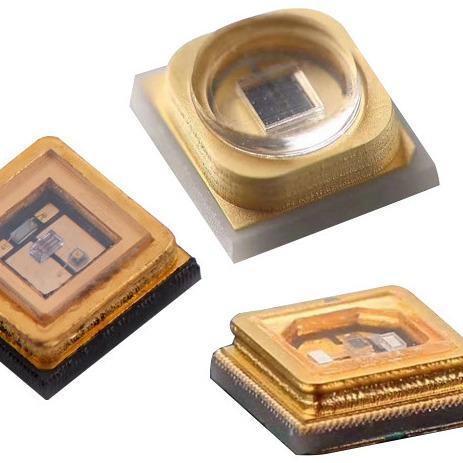

PRODUCT PICTURE

  • Long life span,LM70>=3000 hrs and LM50>=6,000 hrs.
  • Certifications
  • High radiant flux
  • Low thermal resistance
  • Ingorganic encapsulation and Quartz Glass package

Sell Well 250nm 260nm 280nm 3535 Uvc Led Chip 3w Uvc Smd Chip For Air Purifier

Sell Well 250nm 260nm 280nm 3535 Uvc Led Chip 3w Uvc Smd Chip For Air Purifier

Sell Well 250nm 260nm 280nm 3535 Uvc Led Chip 3w Uvc Smd Chip For Air PurifierSell Well 250nm 260nm 280nm 3535 Uvc Led Chip 3w Uvc Smd Chip For Air Purifier

UVC LED CHIP FAQ

Q1: Do you supply OEM,ODM service?

A1: YES,absolutely it can be realized.

Q2: All the pictures are real photo?

A2: Yes, the pictures of all products on this page are 100% real shoot by us.

Q3: How can I get a quotation from you?

A3: Please kindly leave us messages about your needs,including products and quantity,our professional team will reply you very soon (mostly within few hours).

Q4: Is there any discount for bulk order?

A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price.

Q5: Do you support drop shipping and how much is the shippping cost?

A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, and it can be calculated.

Q6: How to place an order?

A6: If you want to place an order, Please feel free to send us an inquiry email or contact us by trademanager online, we will reply you within 24hours(working day).

Q7: What payment terms are available?

A7: T/T,PayPal, Western Union and Secure Payment.

Q8: What about the lead time?

A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples, the delivery could be as fast as same day.

We have professional laboratories and researchers, and carry out a large number of experiments and tests on the ratio of lamp beads to ensure the scientific and effective. We warmly welcome to send us the engineering drawing of your project to get the solutions for you.
