100W 120W 365nm 385nm 395nm uva wavelength 36v Quartz glass sealed LG chip high power uv led array for flatbed printer
LN-CVB80UV-P50
Product Introduction
| POWER | 125W |
| Wavelength | 365nm;385nm;395nm |

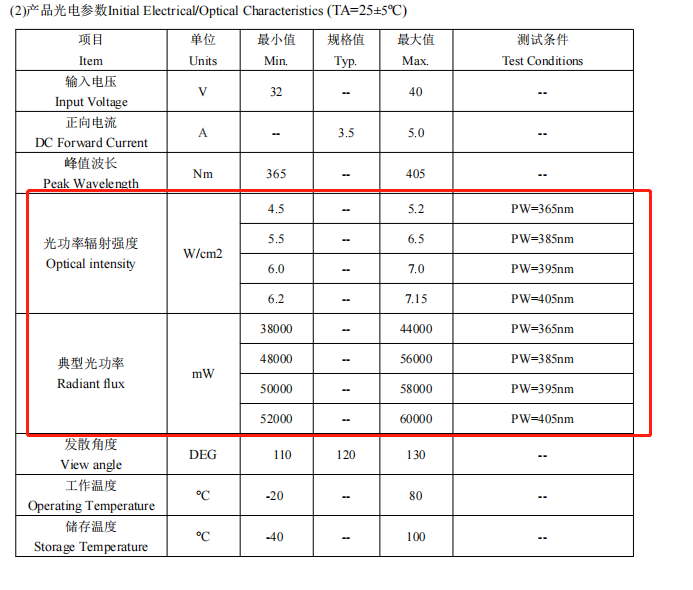

| Optical Power | 38000-44000mW;48000-56000mW;50000-58000mW |
| IF | 3500mA
(Max=5A) |
| Circuit | 10S5P |

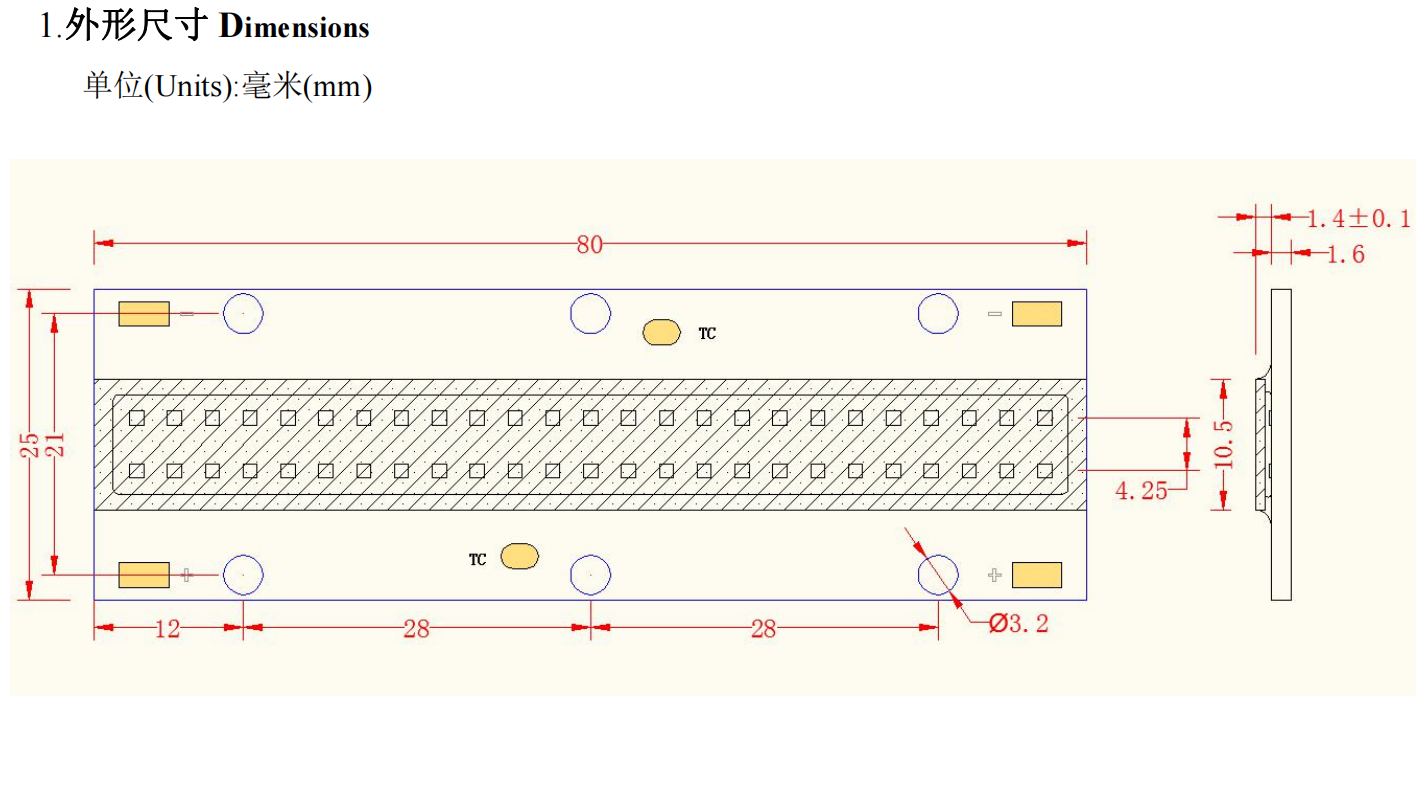

| WHOLE SIZE | 80*25MM |
| VF | 34-38V |
| Lighting Area | 80*10MM |
| LENS | QUARTZ GLASS LENS |
| SUBSTRATE | Super Aluminum |
| Warranty | 10,000Hrs
or 2 years |
| Design Advantage | 1,Long life span
2,low thermal resistance
3,High effiency 40%-50%
4,Ingorganic encapsulation
5,High density and intensity
6,Screw free assemble for high power curing use |
| Appilcation | 1,UV curing
2,LED growing market
3,Offset printer
4,3D printer
5,Exposure machines
6,Inkjet printer |

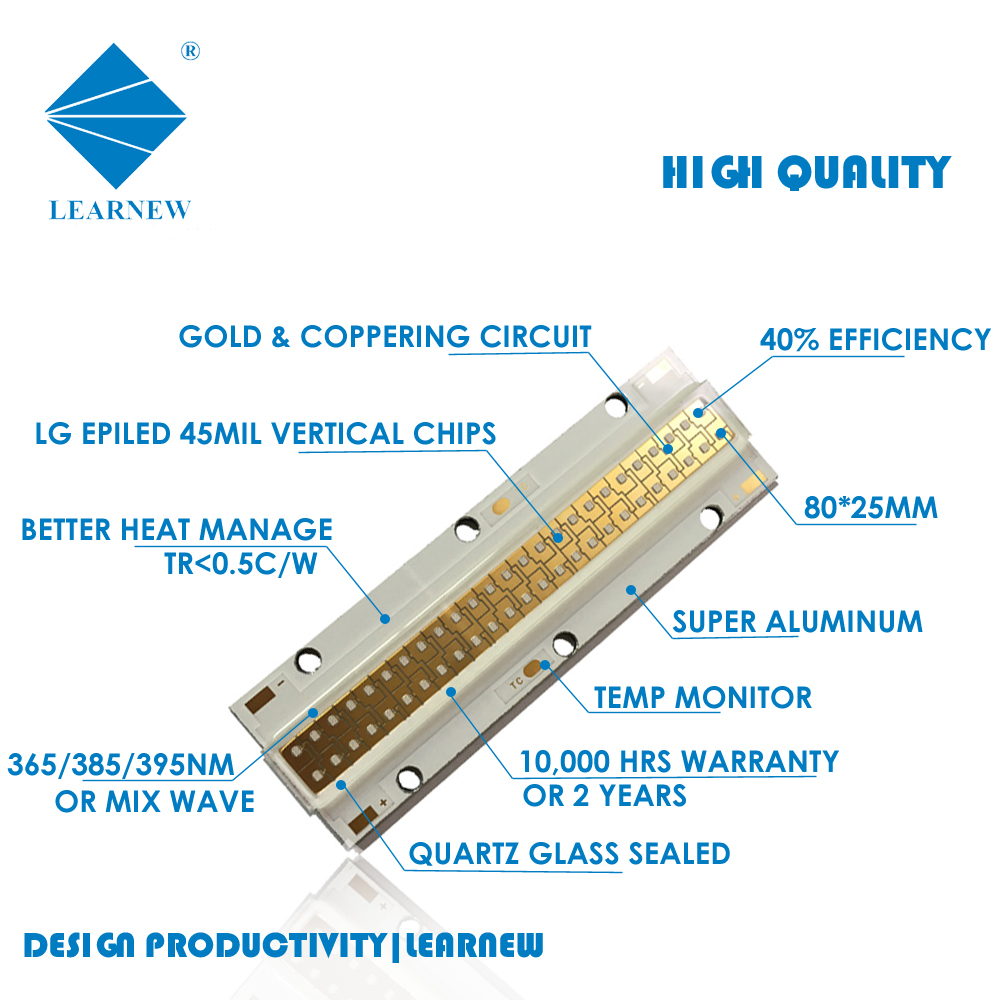

Design Advantage and Application
Company Information
Certification
Factory&Shipping Information
FAQ:
Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.Learnew focus on OEM & ODM service more than 7 years.
Q2: All the pictures are real photo?
A2: Yes, the pictures of all products on this page are 100% real shoot by us.
Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products parameters, application, you contact way and quantity,our professional team will reply you in one hour here.
Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price. Be our fans on alibaba or add learnew opto to “my favorite stores”, you will always get our discount and coupon information at the first time.
Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, you can check on alibaba or ask our team.
Q6: How to place an order?
A6: You can check the shipping cost and discount information online, and place order directly on Alibaba. Or you can contact us for the order details, we will reply you in mins.
Q7: What payment terms are available?
A7: T/T,PayPal, Western Union and Secure Payment.
Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.
