290nm 293nm 295nm UV LED Chips 300nm 305nm 310nm 315nm For Medical Treatment

  • 1
  • 2
  • 3

Brand Name : Learnew Opto

Model Number : UVB LED

Certification : CE

Place of Origin : China

MOQ : 1000

Price : $1.15-1.70/piece

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 1000000piece/month

Delivery Time : 7-15 work days

Packaging Details : We use a layer of waterproof material attached to the packaging box to prevent damage to the product

Type : UV LED

Color Temperature : 290-315nm

Input Voltage(V) : 5-7V

Power : 0.5W 1W

WHOLE SIZE : 3.5*3.5MM

Chip Material : INGAN

Emitting Color : purple

Optical Power : 14-18mW,10-14mW,4-7mW

Forward Current : 100mA (Max=150mA),100mA,50mA (Max=60mA)

Design Advantage : 1,Quartz glass package 2,High radiant flux

Contact Now

290nm 293nm 295nm uv led 300nm 305nm 310nm 315nm uvb led 3535 for Medical treatment

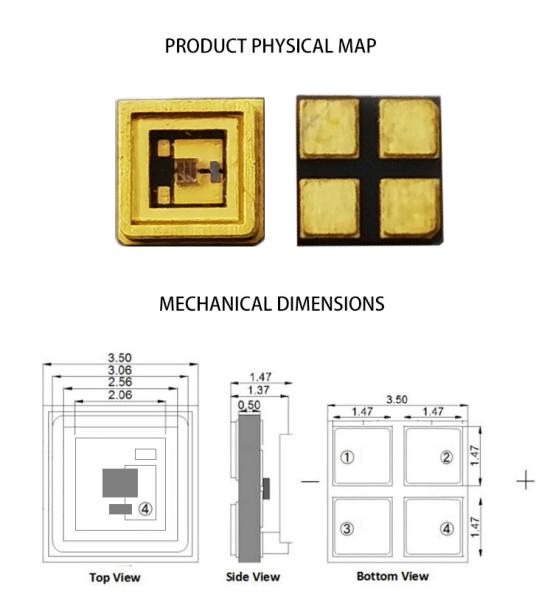

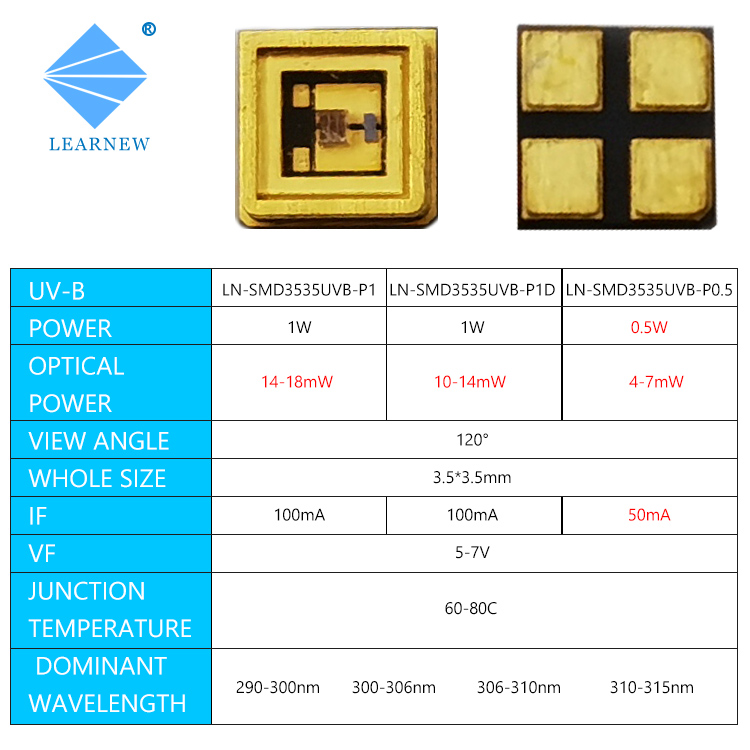

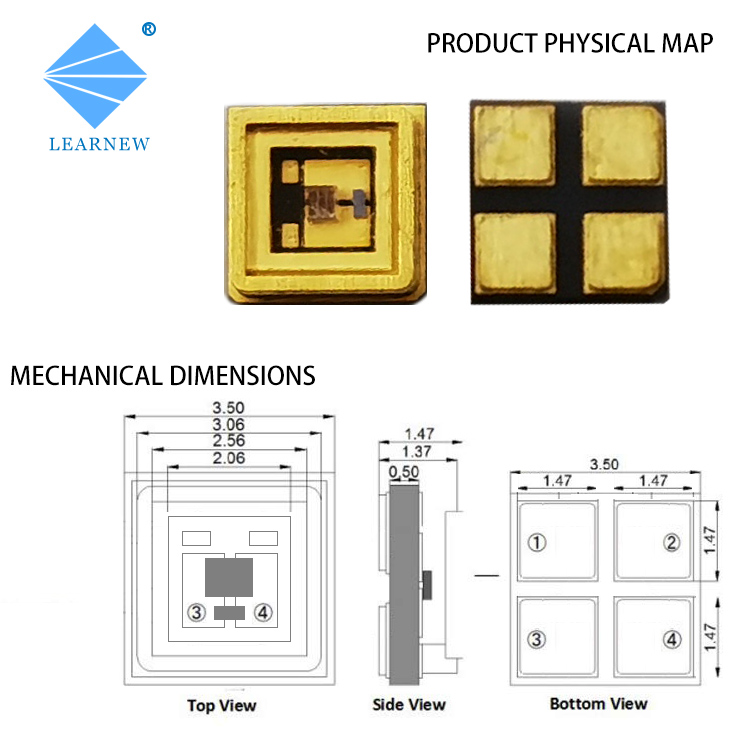

Specification

Product Type
LN-SMD3535UVB-P1
LN-SMD3535UVB-P1D
LN-SMD3535UVB-P0.5
Power
1W
1W
0.5W
Wavelength
290-300nm 300-306nm 306-310nm 310-315nm
Input Voltage(V)
5-7V
Current
100mA (Max=150mA)
100mA
50mA (Max=60mA)
Optical Power
14-18mW
10-14mW
4-7mW
CHIPS
Flip Chip (PW or Dowa 2020)
Flip Chip (PW or Dowa 1520)
Flip Chip (PW or Dowa 1020)
JUNCTION TEMPERATURE
60-80C
Viewing Angle(°)
120°
VIEW ANGLE
3.5*3.5MM
LENS
QUARTZ GLASS
SUBSTRATE
ALN Coppering
Application
Medical treatment
Animal calcium supplement
Plant growth hormone supplement
Marijuana refinement & Animal calcium supplement

Products Description
290nm 293nm 295nm UV LED Chips 300nm 305nm 310nm 315nm For Medical Treatment
290nm 293nm 295nm UV LED Chips 300nm 305nm 310nm 315nm For Medical Treatment
290nm 293nm 295nm UV LED Chips 300nm 305nm 310nm 315nm For Medical Treatment
290nm 293nm 295nm UV LED Chips 300nm 305nm 310nm 315nm For Medical Treatment
Product Application

290nm 293nm 295nm UV LED Chips 300nm 305nm 310nm 315nm For Medical Treatment

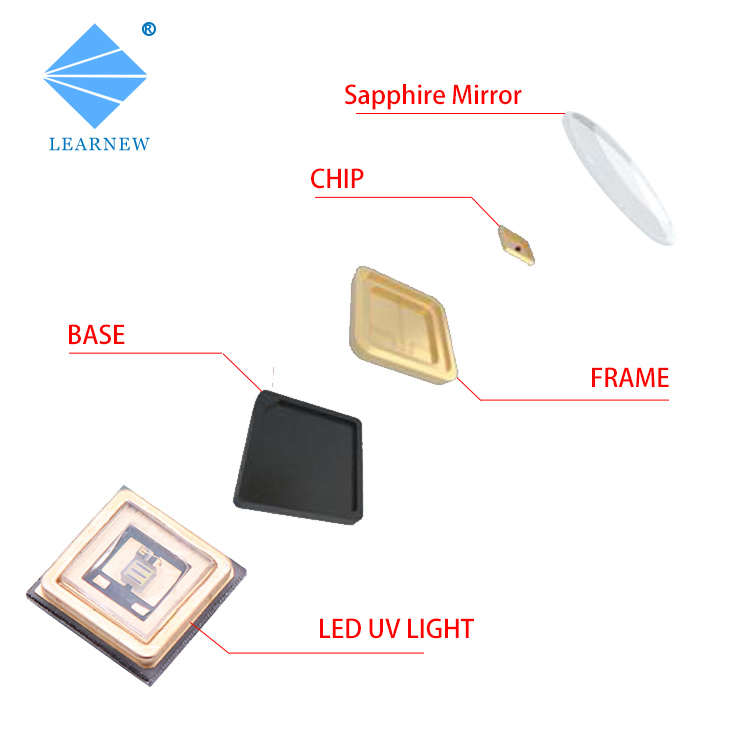

Design Advantage 1,Quartz glass package
2,High radiant flux
3,Narrow Wavelength
4,Inorganic & Nitrogen package
5,Low thermal resistance
FAQ
Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.Learnew focus on OEM & ODM service more than 7 years.

Q2:All the pictures are real photo?
A2: Yes, the pictures of all products on this page are 100% real shoot by us.

Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products parameters,application, you contact way and quantity,our professional team will reply you in one hour here.

Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price. Be our fans on alibaba or add learnew opto to “my favorite stores”, you will always get our discount and coupon information at the first time.

Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, you can check on alibaba or ask our team.

Q6: How to place an order? A6: You can check the shipping cost and discount
information online, and place order directly on Alibaba. Or you can contact us for the order details, we will reply you in mins.


Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.ng Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
