Germicidal SMD 3535 UVC LED Chips With 10 To 18mW Output Power

Brand Name : LEARNEW OPTO

Model Number : LN-SMD3535UVC-P1

Certification : CE/RoHs/SGS

Place of Origin : CHINA

MOQ : 1000

Price : 1.7-2.7

Payment Terms : T/T, Paypal,Alipay, Western Union

Supply Ability : 500,000PCS per month

Delivery Time : 6-13 working days

Packaging Details : Anti-static Blister packing

Electronic Power : 1Watt

Dominant Wavelength : 250-260NM, 260-270NM, 270-280NM

Color : Deep UVC

Input Current : 100-150mA

Input Voltage : 6.0-8.0V

Substrates : ALN Coppering

LENS : Quartz glass lens

View Angle : 120DEG

Contact Now

Germicidal SMD 3535 UVC LED Chips With 10 To 18mW Output Power

North American customers recommended 1W 3535 UVC LED Chips

Germicidal SMD 3535 UVC LED Chips With 10 To 18mW Output Power

Specification of SMD LED Chips

models Power Peak Wavelength Radiant Power Whole Size
LN-SMD3535UVC-P1(250-260NM) 1.0W 250-260NM 12-15mW 3.5*3.5mm
LN-SMD3535UVC-P1(260-270NM) 1.0W 260-270NM 14-18mW 3.5*3.5mm
LN-SMD3535UVC-P1(270-280NM) 1.0W 270-280NM 14-18mW 3.5*3.5mm

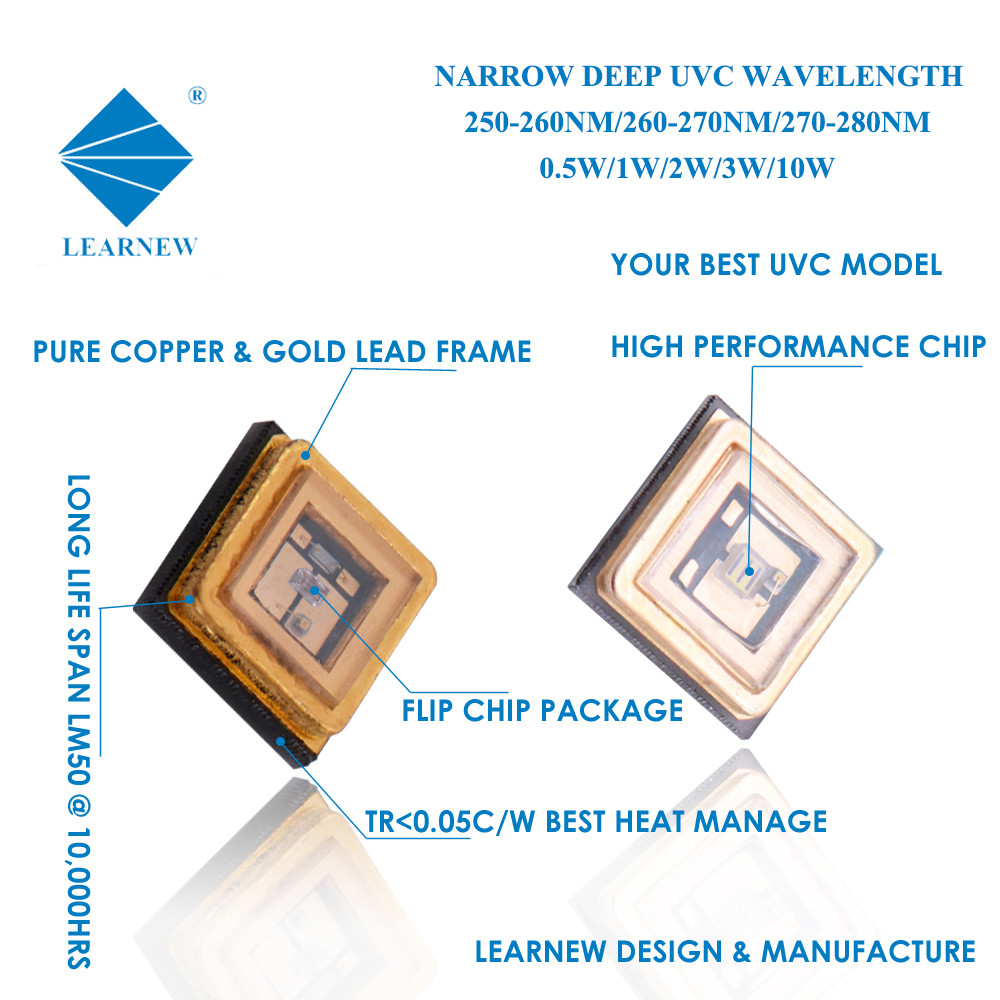

Thick 3535 ALN Coppering Substrates with New Generation Flip chip LG/Seoul semi/Dowa/PW Packing technology, Results in a good heat conductive(Thermal resistance 0.1-0.2C/W) & Long Life span(LM50 10000Hrs) & Efficiency in Sterilization purpose.

Germicidal SMD 3535 UVC LED Chips With 10 To 18mW Output Power

Germicidal SMD 3535 UVC LED Chips With 10 To 18mW Output Power

Germicidal SMD 3535 UVC LED Chips With 10 To 18mW Output Power

Appilcation:

  • CU Hospital
  • Air purifier

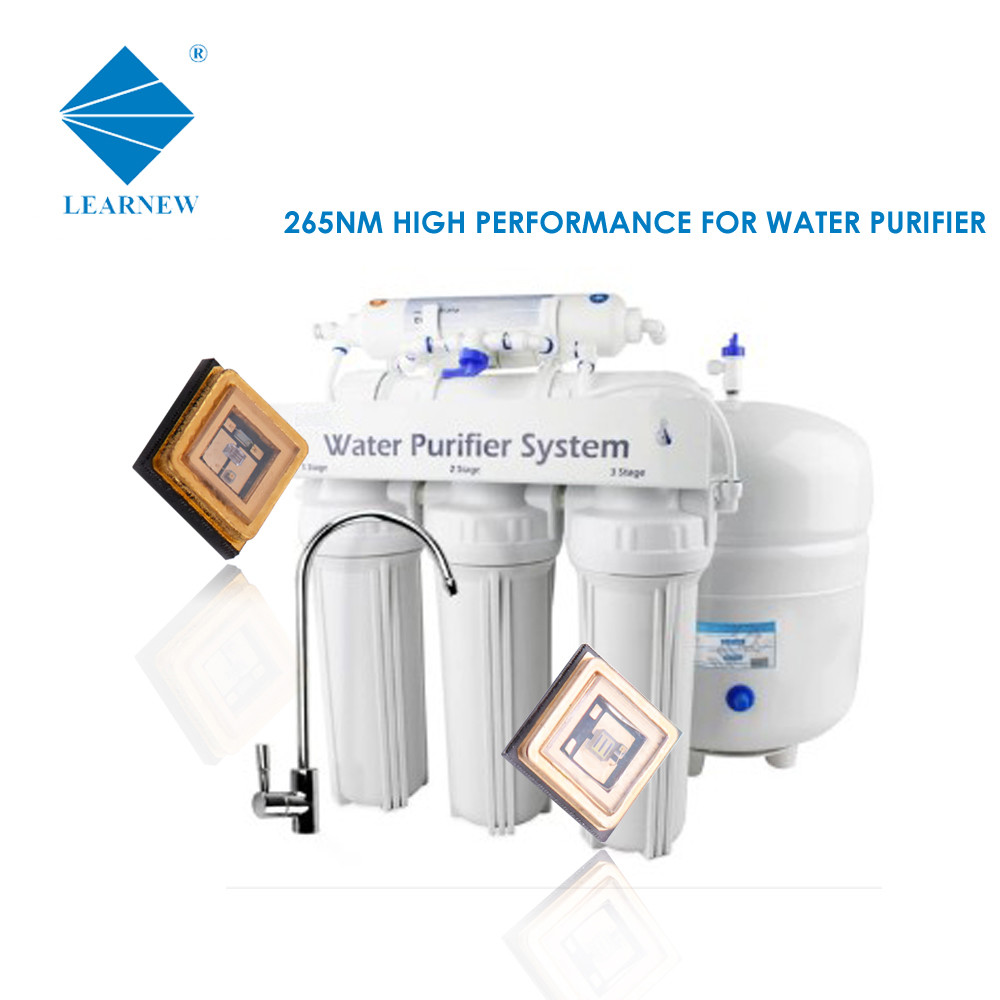

  • Water purifier
  • Washing machines Sterilization...

Germicidal SMD 3535 UVC LED Chips With 10 To 18mW Output Power

Germicidal SMD 3535 UVC LED Chips With 10 To 18mW Output Power

Feedbacks:

Germicidal SMD 3535 UVC LED Chips With 10 To 18mW Output Power

Germicidal SMD 3535 UVC LED Chips With 10 To 18mW Output Power

Germicidal SMD 3535 UVC LED Chips With 10 To 18mW Output Power

FAQ:

Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.
Q2: All the pictures are real photo?
A2: Yes, the pictures of all products on this page are 100% real shoot by us.
Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products and quantity,our professional team will reply you very soon (mostly within few hours).
Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price.
Q5: Do you support drop shipping and how much is the shippping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, and it can be calculated.
Q6: How to place an order?
A6: If you want to place an order, Please feel free to send us an inquiry email or contact us by trademanager online,

we will reply you within 24hours(working day).
Q7: What payment terms are available?
A7: T/T,PayPal, Western Union and Secure Payment.
Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 3-30working days. For samples, the delivery could be as fast as same day.
